# Harbor

Integrate Harbor with OX to centralize security findings alongside container, pipeline, cloud, and runtime signals already in OX.

OX scans Harbor on a schedule and on demand, enriches findings with OX context (application mapping, workflows, and compliance), and presents a unified queue for investigation and reporting.

After you connect, Harbor scan results appear in the Active Issues page (use the filter **Source tool > Harbor**).

## What OX adds

* **Context and correlation:** OX maps findings to applications, services, and teams to show impact and ownership.
* **Prioritization with severity factors:** OX may reprioritize scanner severities when exploitability and environment context reduce risk (for example, Critical → High). Severity factors explain why the priority changed.
* **Evidence at a glance:** When available, OX displays scanner evidence, file locations, and remediation guidance alongside OX analytics to speed triage.

## Connection Methods

For general information about connection methods, see[ Connection methods](/get-started/onboarding-to-ox/source-control/connection-methods.md).

Connect to OX with a Harbor username and token.

## Prerequisites

**OX**

* OX permission to configure connectors

**Harbor**

* Admin permissions to the Harbor account you want to connect. The account must be a personal account.

## Connect with username and token

### Step 1: Create personal access token \[Harbor]

This step has several parts.\
\
**Create Robot Account**

1. Verify the [prerequisites ](#prerequisites)are in place.
2. Log in to your Harbor account.
3. From the left menu pane, select **Robot Accounts**.<br>

   <figure><img src="/files/RCKIVP8cJw9duJlllS9l" alt=""><figcaption></figcaption></figure>
4. Select **New Robot Account**.
5. In **Create System Robot Account**, complete the details.
   * **Name:** Enter a name for the OX account.
   * **Expiration time:** Enter a value (days) or set to Never (recommended).<br>

     <div align="left"><figure><img src="/files/FTjC64Tjswdlhk4oLmyh" alt="" width="563"><figcaption></figcaption></figure></div>
6. Select **Next**.

**Add permissions**

1. In **Select System Permissions**, select the following permissions:

   * Project: List
   * Registry: List and Read

   <div align="left"><figure><img src="/files/sAlcatOScjHTbkemMuvy" alt="" width="563"><figcaption></figcaption></figure></div>
2. Select **Next**.
3. In **Select Project Permissions**, check the box to cover all projects or select the project and select **PERMISSIONS** to add permission for the selected project.<br>

   <div align="left"><figure><img src="/files/2mGQORdKGmeW62FmpVVU" alt=""><figcaption></figcaption></figure></div>
4. On the next screen, scroll and select the following permissions:
   * **Artifact:** List and Read
   * **Repository:** List, Pull and Read
   * **Project:** Read
   * **Tag:** List<br>

     <div align="left"><figure><img src="/files/rwJZcYOKZ4JZCDFXHeI5" alt="" width="563"><figcaption></figcaption></figure></div>
5. Select **Finish**.
6. A success message displays and shows the token name and secret. Save the secret securely. You cannot view it again after this step.\
   **Best practice:** Store credentials in a secrets manager and set a reminder to rotate them according to your policy.<br>

   <div align="left"><figure><img src="/files/lQDi2y5Sn7ZXdcxvcpjW" alt="" width="563"><figcaption></figcaption></figure></div>

### Step 2: Connect OX to Harbor \[OX]

1. Verify the [prerequisites ](#prerequisites)are in place.

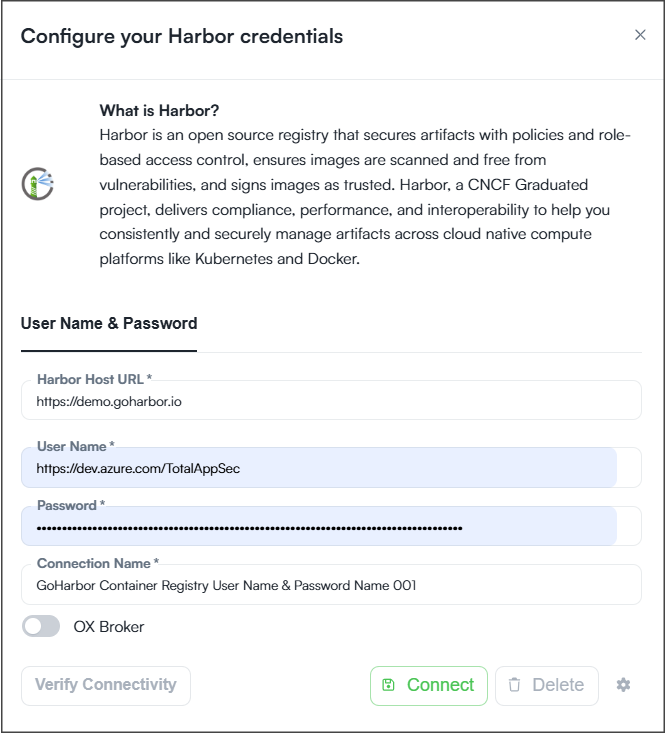

2. In OX, go to **Connectors > Registry** and select **Harbor**.

<figure><img src="/files/AreIE0KTVZIKqnQYDdf5" alt="" width="499"><figcaption></figcaption></figure>

3. Enter the following parameters.

| Parameter       | Description                                                                                                                                                                                                                                                                           |
| --------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Harbor Host URL | Enter the URL of your Harbor instance.                                                                                                                                                                                                                                                |
| User Name       | Enter the username that OX will use to authenticate to Harbor.                                                                                                                                                                                                                        |
| Password        | Enter the password associated with the Harbor user account.                                                                                                                                                                                                                           |
| Connection Name | The name is generated automatically by OX. You can change it at any time.                                                                                                                                                                                                             |
| OX Broker       | Enable to connect through an OX Broker. Use this option when Harbor is accessible only through an internal network or when your organization requires all connector traffic to be routed through an [OX Broker](/get-started/onboarding-to-ox/prerequisites-and-access/ox-broker.md). |

3. Select **CONNECT**. OX validates the credentials.
4. In **Configure your Harbor credentials**, select **VERIFY CONNECTIVITY**.\
   A green checkmark indicates a successful connection. If verification fails, check your credentials and permissions.

**Optional configurations**

* To change the images OX scans and monitors, see the section [Change the locations OX scans](#change-the-locations-ox-scans).
* To connect more Harbor accounts to the same organization in the OX platform, repeat the process.
* For information on the OX Broker, see the article [OX Broker](/get-started/onboarding-to-ox/prerequisites-and-access/ox-broker.md).

## Change the locations OX scans

Once you have a connection, you can change the locations that OX scans and monitors.

1. Use the **Gear** icon at the bottom of the Configuration screen.
2. OX displays the locations or objects that OX scans and monitors.
3. Change the selection as needed.
4. Select **SAVE**.

<div align="left"><figure><img src="/files/jffnn3K9mCPbTgdiiHHu" alt="" width="563"><figcaption></figcaption></figure></div>
